EXPERTISE IN DC POWER SUPPLY TECHNOLOGY
DELTA ELEKTRONIKA has been designing and manufacturing high-quality DC power supplies since 1959.
Our portfolio includes standard, semi-custom, and fully customized solutions designed to meet the highest demands for precision, stability, and reliability.
From laboratory power supplies to industrial and programmable systems, DELTA ELEKTRONIKA delivers precision-engineered DC power solutions built for long-term performance and dependable operation.
TAILORED SOLUTIONS FOR DIVERSE APPLICATIONS
With more than six decades of experience in power electronics design and manufacturing, DELTA ELEKTRONIKA supports customers across a wide range of industries, including:
-
Research and development
-
Aerospace and defense -
Automotive and test engineering
-
Medical technology
-
Telecommunications and networking
-
Industrial automation
Whether you need a compact laboratory supply, a rugged industrial power system, or a custom-designed solution, our engineering team provides systems optimized for your specific environmental and electrical requirements.
YOUR BENEFITS AT A GLANCE
-
DC power supplies from 0–15 V up to 0–600 V, power up to 15 kW
-
Standard, semi-custom, and fully customized designs
-
AC-DC and DC-DC solutions with exceptionally low ripple and noise
-
Fast transient response for dynamic loads
-
Up to 30× lower EMI emissions than typical market standards
-
Proven long-term reliability in demanding environments
-
Comprehensive testing – every unit is thoroughly verified before delivery
-
Global technical support and engineering expertise
PRODUCTS OVERVIEW
CHOOSE FROM OUR PRODUCT CATEGORIES
Description
Datasheet
Power
Voltage Range
Current Range

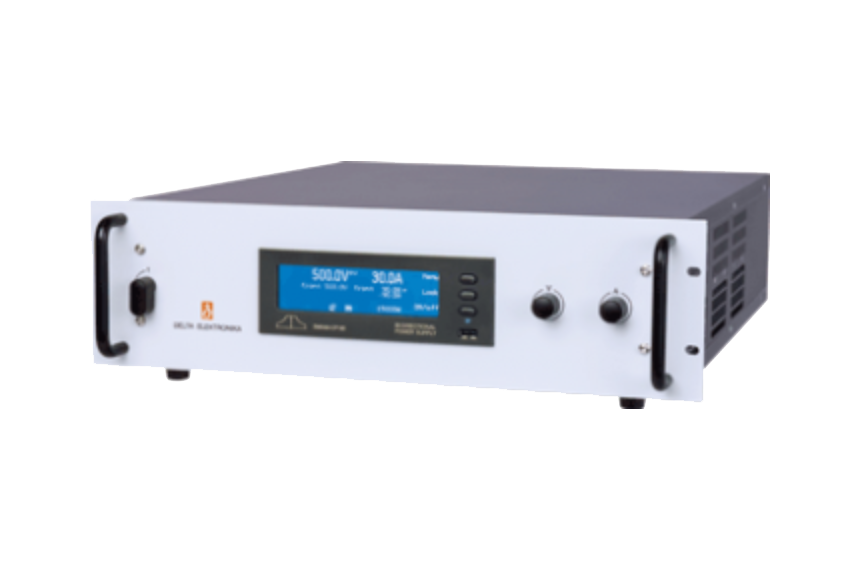

- Output power: 15 kW
- Bi-directional DC power supply
- Constant Power, programmable
- Bench or rack mounting PSU
up to 500 Vdcup to +/- 90 A15 kW
- Single Phase Input: 90-265 Vac
- 19" Rack Mounting or Laboratory use
- Paralles and Series Option
- EN60950 and EN61010
800 Wup to 400 Vdcup to 80 A
- Single Phase Input: 90-265 Vac
- 19" Rack Mounting or Laboratory use
- Paralles and Series Option
- EN60950 and EN61010
1500 Wup to 400 Vdcup to 100 A
- 3-Phase Input 380/400/415 Vac
- 19" Rack Mounting or Laboratory use
- Paralles and Series Option
- EN60950 and EN61010
6000 Wup to 600 Vdcup to 400 A
- Single and three phase input
- 19" Rack Mounting or Laboratory use
- Paralles and Series Option
- EN60950 and EN61010

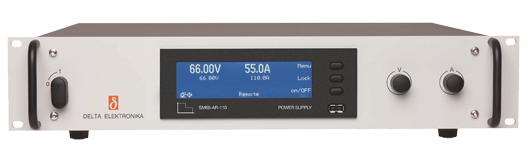

3300 Wup to 660 Vdcup to 220 A
Description
Datasheet
Power
Voltage Range
Current Range
- Single Phase Input 92-265 Vac
- 19″ Rack Mounting or Laboratory use
- Paralles and Series Option
- EN60950 and EN61010
300 W0 - 30 V0 - 10 A
- Single Phase Input 90-265 Vac
- 19″ Rack Mounting or Laboratory use
- Paralles and Series Option
- EN60950 and EN61010
150 Wup to 300 Vup to 10 A
- Single Phase Input 90-265 Vac
- 3 independent, floating outputs
- Very low output ripple and spikes
- EN60950 and EN61010

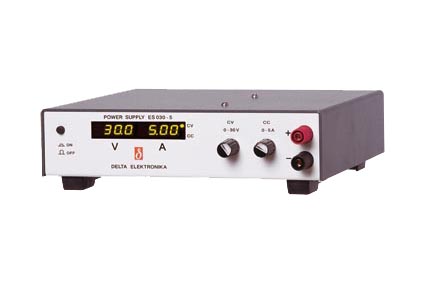

150 W2x 0 - 20 V
0 - 10 V0 - 2.5 A
0 - 5 A
Description
Datasheet
- High accuracy, low drift
- 16 bit AD and DA conversion
- Isolated from the output voltage, working voltage 1000 V DC
- Floating with respect to earth
- Factory calibrated for optimum accuracy
- 8 inputst
- 8 Open Collector outputs
- Programmable via Ethernet or sequences
- Isolated from the output voltage, working voltage 1000 V DC
- Floating with respect to earth
- 4 relays with make-and-break contacts
- Additional (floating) interlock or 24 V enable system
- Programmable via Ethernet
- Isolated from the output voltage, working voltage 1000 V DC
- Floating relative to earth
- For applications where more current is required than 1 SM15K unit can deliver
- Optimal dynamic response in parallel operation
- Fast reaction time: up to 250 µs
- Programming and monitoring of voltage and current
- Web interface
- Read back of status signal
- Software calibration
- Isolated digital user in- and outputs
- Selectable 0-5 V and 0-10 V signal levels
- Isolated programming and monitoring of U, I and status signals
- Prevents problems with earth loops and CM-voltages
- Factory installed or external module
- Programming and monitoring of voltage and current
- Up to 15 PSC's on one BUS
- Software calibration
- Isolated digital user in- and outputs
- To connect analog programmable power supplies in master/slave parallel output mode. For example, the ES-series
- Each power supply gets the same information
- Easy way of connecting power supplies in parallel
- Fastest way to program multiple power supplies (unlimited quantity)
- To connect analog programmable power supplies in master/slave series mode. For example, the ES-series
- Equal voltage sharing in series operation
- Series operation possible up to 600 V
- 19-inch rack
- Rack adapters are offered to mount the following series: SM800, ES300, ES150 and PSC-series.
