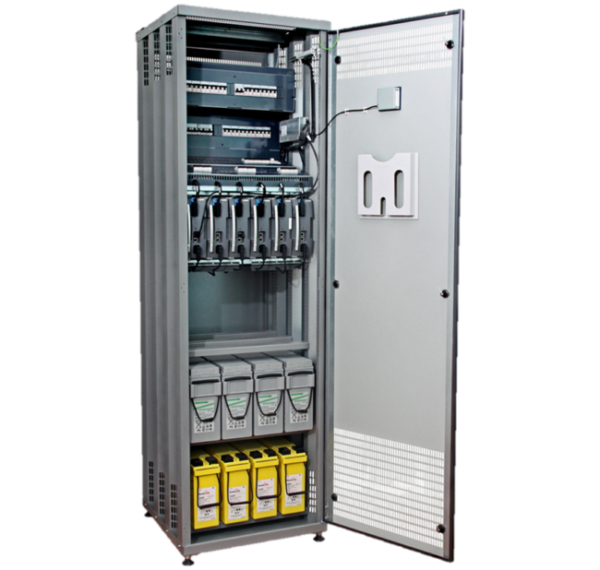

OPUS C Cabinet Power Systems

OPUS C DC power systems are robust, natural convection cooled, N+1 redundant backup power solutions for critical infrastructure applications.

OPUS C Series is an industry grade Power System family that delivers uninterrupted power for whole voltage ranges from 24 to 220VDC. With highly efficient, convection-cooled rectifiers, a state-of-the art controller and a highly modular mechanical structure we are able to design unique configurations that meet a multitude of industrial, communications, utility and military applications.

OPUS C Systems have a number of unique features such as centralized inverter control, energy save mode and remote battery service. OPUS C power systems offer a plus or minus or floating ground and have a max output power of 19.2 kW. System options include a battery LVD, load LVD, extra battery connections, temperature sensor, bottom entry cabling and IP21 kit.

Key features

• Natural convection
• Models for 24, 48, 60, 110, 125 & 220 VDC
• Max 19.2 kW output power
• N+1 redundant operation
• Plus or minus grounded or floating
• Battery connection: 1 string with full current: MCB or MCCB
• Load distribution modules (optional)
• Bottom entry cabling optional
• Optional IP21 kit and drip cover
• Safety: IEC/EN 60950-1

Applications

• Critical infrastructure
• Transmission substations
• Distribution substations
• Process industries
• Special communications
• Telecommunications
