Enedo is an international company specializing in the design and manufacturing of custom and standard power supply solutions. Our product range includes power systems, AC/DC power supplies, and LED drivers for demanding industrial applications.
SOLUTIONS
We deliver reliable, high-performance power solutions tailored to the unique needs of various industries:
- Rail – Reliable and efficient power systems for transportation and railway infrastructure.
- Medical – Safe and precise power solutions for critical medical devices and equipment.
- LED Lighting – Energy-efficient drivers and power systems for advanced lighting applications.
- Utility & Energy – Robust solutions supporting power generation, distribution, and renewable energy.
- Industrial – Durable and scalable power systems for automation, production, and control environments.
OUR EXPERTISE
With over 80 years of combined experience across multiple sectors, we possess the technical knowledge and practical expertise to meet and exceed any design challenge — delivering solutions that ensure performance, efficiency, and longevity.
OUR PHILOSOPHY
The name Enedo comes from the idea of: energy + doing things / getting things done
We bring together energy and action — transforming ideas into reliable, high-quality solutions that power progress.
PRODUCTS OVERVIEW POWER SUPPLIES
CHOOSE FROM OUR PRODUCT CATEGORIES
Description
Datasheet
Input
Power
Size
- 2 x 4 x 1″ (51 x 102 x 27mm) form factor
- 90 – 264 VAC input voltage range
- Active PFC – meets EN61000-3-2
- Efficiency >90%
90 – 264 VAC160 Watt2 x 4 x 1″ (51 x 102 x 27mm)
- 85 – 264 VAC universal input voltage range
- 200 W rated power
- 1.00″ (25.4 mm) low profile package (28.4 W/in3)
- High efficiency (up to 94%)
85-264200 Watt57.9 x 78.6 x 25.4 mm (2.28 x 3.09 x 1.00 in)
- 60 to 250W output power ranges
- 12, 24, 36 & 48 VDC output voltages
- Temperature compensated battery charging
- Wide output adjustment range
230/115 // 90 - 26460 -250 Watt51 x 121 x 81 mm
66 x 148 x 113 mm
75 x 173 x 122 mm
- 85 – 264 VAC Universal input voltage range
- 300 W rated power
- 1.00” low profile package actor (32.1 W/in3)
- High efficiency (up to 94%)
85-264300 Watt57.9 x 104.0 x 25.4 mm (2.28 x 4.09 x 1.00 in)
- 94% efficient
- 400 W power output (440 W peak)
- Wide input voltage range (90 – 264 VAC)
- 12, 24, 36, & 48 VDC standard output variants
90 - 264400 Watt84.4 x 183.0 x 41.0 mm (3.32 x 7.20 x 1.61 in)
- 94% efficient
- 400 W power output (440 W peak)
- Wide input voltage range (90 – 264 VAC)
- 12, 24, 36, & 48V standard output variants
90 - 264400 Watt84.4 x 166.5 x 41.0 mm (3.32 x 6.55 x 1.61 in)
- 94% efficient
- 400 W power output (440 W peak)
- wide input voltage range (90 – 264 VAC)
- 12, 24, 36, 48 VDC standard output voltages
90 – 264 VAC400 Watt76.0 x 164.2 x 37.7 mm (2.99 x 6.46 x 1.48 in)
- 94% efficient
- 400 W power output (440 W peak)
- Wide input voltage range (90 – 264 VAC)
- 12, 24, 28, 36, & 48 VDC standard output variants
90 – 264 VAC400 Watt76.0 x 164.2 x 37.7 mm (2.99 x 6.46 x 1.48 in)
- 94% efficient
- 400 W power output (440 W peak)
- Wide input voltage range (90 – 264 VAC)
- 12, 24, 28, 36, & 48 VDC standard output variants
90 – 264 VAC400 Watt76.0 x 164.2 x 37.7 mm (2.99 x 6.46 x 1.48 in)
- IP67 ingress protection index
- 400 W power output (440 W peak)
- Universal input voltage range (90 – 264 VAC)
- 12, 24, 36, & 48 VDC standard output variants
90-264 VAC400 Watt83 x 212 x 42 mm (3.27 x 8.34 x 1.65 in)
- Class II IEC protection
- Input surge current limiting
- 400 W rated power (440 W peak up to 10 s)
- High efficiency up to 94%
90-264 VAC400 Watt100.0 x 228.0 x 51.5 mm
(3.94 x 8.98 x 2.03 in)
- 420 W rated power, 330 W natural convection
- High efficiency to 94% typical
- 48 VDC standard output
- Low in-rush current (<25 A)
90 – 305 VAC420 W rated power,
330 W natural convection3.0 x 5.0 x 1.5”
- 90 – 305 VAC universal input voltage range
- 460 W rated power, 340 W free-air cooledt
- High efficiency to 94.5%
- +5V 1 A stand-by output
90-305460 Watt76.2 x 127.0 x 38.5 mm (3.00 x 5.00 x 1.51 in)
- High 94% operating efficiency from 50% load and above
- Low stand-by power consumption <0.35 W
- 600 W free air cooled, 800 W peak (10s)
- Low earth/touch leakage currents (<400 µA)
85 – 305 VAC600 Watt125.0 x 250.5 x 60.0 mm
(4.92 x 9.86 x 2.36 in)
- 600W steady state power with 800W peak (up to 10s)
- 85 – 305 VAC extended input voltage range
- 24, 28, 36 and 48 VDC output variants
- 94% efficiency rating
85 – 305 VAC600 Watt4.2″ x 8.1″ x 1.5″
(107 x 206 x 41mm)- 600W steady state power with 800W peak (up to 10s)
- 85 – 305 VAC extended input voltage range
- 24, 28, 36 and 48 VDC output variants
- 94% efficiency rating
85 – 305 V600 Watt4.2″ x 7″ x 1.5″ (107 x 178 x 41mm)
- Free-air cooled
- Input inrush current limiting
- 24 and 48 VDC standard output variants
- 94% efficiency rating
85 – 305 VAC750 Watt101.6 x 234 x 41.0 mm
(4.00 x 9.21 x 1.61 in)
- Universal input voltage range 85 – 305 VAC
- 750 W rated power
- Free-air cooled
- Input inrush current limiting
85 – 305 VAC750 Watt101.6 x 234.7 x 41.0 mm
(4.0 x 9.21 x 1.61 in)
- 800W output power range modules
- Parallel and series connectable
- Master-Slave connection
- Settable DC output voltage from 0 – 144VDCt
55 - 264 VAC800 Watt220 x 112 x 73 mm
- Universal input voltage range 85 – 305 VAC
- 1200 W rated power
- External forced-air cooled
85 - 3051200 Watt101.6 x 234.0 x 41.0 mm (4.00 x 9.21 x 1.61 in)
- 1600W output power range modules
- Parallel and series connectable
- Master-Slave connection
- 12, 24, 36, 48, and 60VDC nominal output variants
55 - 264 VAC1600 Watt267 x 135 x 85 mm with rubber ends
- Efficiency up to 97%
- Fan-free convection cooling
- MTBF 1800000h @ 25 Deg C, Telcordia SR-332
- Standard output variants 24, 48, 60, 110, 125 and 220 VDC
85 - 300 VAC1500/2000 Watt169 x 83 x 357 mm,
- 800 – 3200W output power range modules
- Parallel and series connectable
- Master-Slave connection
- 12, 24, 36, 48, 72 VDC standard output variants
70 – 264 VAC800 – 3200 Watt-
Description
Datasheet
Input
Power
Size
- Configurable from 1 to 8 outputs
- High power density (23W/in3)
- Universal input voltage (85 – 264 VAC)
- Active PFC
85 – 264 VAC150 - 600 W3 x 5.6 x 1.6″ (78 x 144 x 41m)

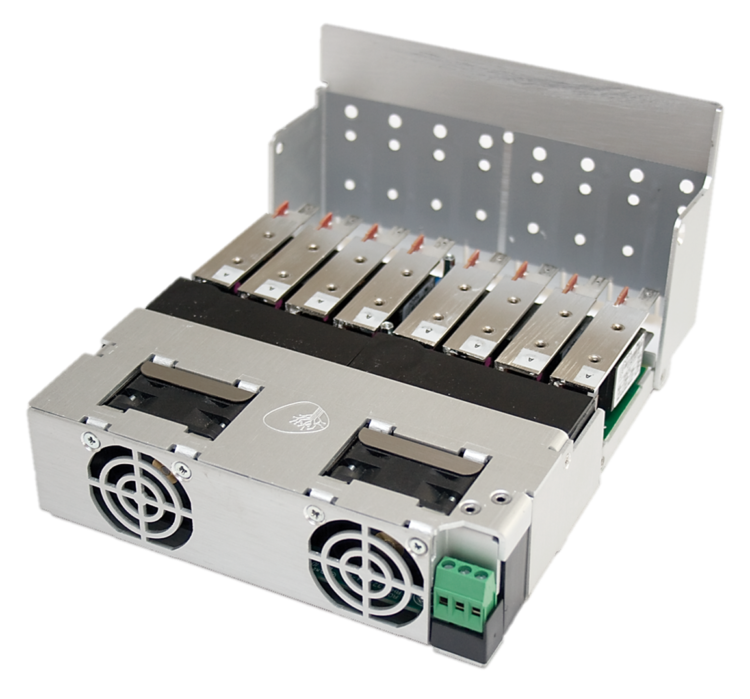

- Configurable from 5 to 16 outputs
- Up to 1200 W output power
- Input surge current limiting (<40A)
- High power density (23W/in3)
85 – 264 VAC750 - 1200 W6.09″ x 6.05″ x 1U
(154 x 155 x 41 mm)
Description
Datasheet
Input
Power
Size
- IP67 ingress protection index
- 400 W power output (440 W peak)
- Universal input voltage range (90 – 264 VAC)
- 12, 24, 36, & 48 VDC standard output variants
90 – 264 VAC400 Watt83 x 212 x 42 mm
(3.27 x 8.34 x 1.65 in)- 420 W rated power, 330 W natural convection
- High efficiency to 94% typical
- 48 VDC standard output
- Low in-rush current (<25 A)
90 – 305 VAC420 W rated power,
330 W natural convection3.0 x 5.0 x 1.5”- 600W steady state power with 800W peak (up to 10s)
- 85 – 305 VAC extended input voltage range
- 24, 28, 36 and 48 VDC output variants
- 94% efficiency rating
85 – 305 V600 Watt4.2″ x 7″ x 1.5″ (107 x 178 x 41mm)- 600W steady state power with 800W peak (up to 10s)
- 85 – 305 VAC extended input voltage range
- 24, 28, 36 and 48 VDC output variants
- 94% efficiency rating
85 – 305 VAC600 Watt4.2″ x 8.1″ x 1.5″
(107 x 206 x 41mm)- High 94% operating efficiency from 50% load and above
- Low stand-by power consumption <0.35 W
- 600 W free air cooled, 800 W peak (10s)
- Low earth/touch leakage currents (<400 µA)
85 – 305 VAC600 Watt125.0 x 250.5 x 60.0 mm
(4.92 x 9.86 x 2.36 in)- Universal input voltage range 85 – 305 VAC
- 750 W rated power
- Free-air cooled
- Input inrush current limiting
85 – 305 VAC750 Watt101.6 x 234.7 x 41.0 mm
(4.0 x 9.21 x 1.61 in)- Free-air cooled
- Input inrush current limiting
- 24 and 48 VDC standard output variants
- 94% efficiency rating
85 – 305 VAC750 Watt101.6 x 234 x 41.0 mm
(4.00 x 9.21 x 1.61 in)
- Nominal input voltage: 220 – 400 VAC
- Non-isolated, Class I
- 2 independent output channels max 521 W per channel
- Programmable output current setting from 700 – 1400 mA
260-5201042 W500 x 150 x 120 mm (19.68 x 5.90 x 4.72 in)
- Nominal input voltage: 1500 W models: 120/220 – 240/277 VAC 1563 W models: 220-240/277/347/400 VAC
- Non-isolated, Class I
- 3 independent output channels: 1500 W models – max 500 W per output channel 1563 W models – max 521 W per output channel
260-5201563 W500 x 150 x 120 mm (19.68 x 5.90 x 4.72 in)
Description
Datasheet
Input
Power
Size
- 90 – 264 VAC wide input voltage range
- Small form factor 2 x 4 x 1″ (51 x 102 x 27mm)
- Efficiency >91% typical
- 5, 12, & 24 VDC standard output variants
90 – 264 VAC160 Watt2 x 4 x 1″ (51 x 102 x 27mm)
- IP67 ingress protection rating
- 400 W power output (440 W peak)
- Wide input voltage range (90 – 264 VAC)
- 12, 24, 36, & 48 VDC standard outputs
90 – 264 VAC400 Watt83 x 212 x 42 mm (3.27 x 8.34 x 1.65 in)
- 94% efficient
- 400 W power output (440 W peak)
- Wide input voltage range (90 – 264 VAC)
- 12, 24, 36, & 48 VDC standard outputs
90 – 264 VAC400 Watt76.0 x 164.2 x 37.7 mm
(2.99 x 6.46 x 1.48 in)
- 94% efficient
- 12, 24, 36, & 48 VDC standard outputs
- +5V stand-by and 12V auxiliary outputs
- 4000m altitude operation
90 – 264 VAC400 Watt84.4 x 183.0 x 41.0 mm (3.32 x 7.20 x 1.61 in)
- 94% efficient
- 400 W power output (440 W peak)
- Wide input voltage range (90 – 264 VAC)
- 12, 24, 36, & 48 VDC standard outputs
90 – 264 VAC400 Watt76.0 x 164.2 x 37.7 mm
(2.99 x 6.46 x 1.48 in)
- 94% efficient
- 12, 24, 28, 36, & 48 VDC standard outputs
- +5V stand-by and 12V auxiliary outputs2
- 4000m altitude operation
90 - 264400 Watt84.4 x 170.5 x 41.0 mm (3.32 x 6.71 x 1.61 in)
- 94% efficient
- 400 W power output (440 W peak)
- Wide input voltage range (90 – 264 VAC)
- 12, 24, 36, & 48 VDC standard outputs
90 – 264 VAC400 Watt76.0 x 164.2 x 37.7 mm
(2.99 x 6.46 x 1.48 in)
- 90 – 305 VAC universal input voltage range
- 460 W rated power, 330 W free-air cooled
- High efficiency to 94.5%
- 24, 36, 48 & 56 VDC standard output variants
90 – 305 VAC460 Watt76.2 x 127.0 x 38.5 mm (3.00 x 5.00 x 1.51 in)
- P66 / 67 / 68 rated sealed enclosure
- High 94% operating efficiency
- Low stand-by power consumption<0.3W
- Wide range input 90 – 264 VAC
90 – 264 VAC600 W125.0 x 250.5 x 60.0 mm (4.92 x 9.86 x 2.36 in)
- Configurable from 1 to 8 outputs
- High power density (23W/in3)
- Wide input voltage (85 – 264 VAC)
- Steady 600 W output power from a 3 x 5.6 x 1.6” form factor
85 – 264 VAC600 Watt3 x 5.6 x 1.6″ (78 x 144 x 41mm)- 600W steady state power with 800W peak (up to 10s)
- 85 – 305 VAC extended input voltage range
- 24, 28, 36 and 48 VDC output variants
- 94% efficiency rating
85 – 305 VAC600 Watt4.2″ x 8.1″ x 1.5″
(107 x 206 x 41mm)- 600W steady state power with 800W peak (up to 10s)
- 85 – 305 VAC extended input voltage range
- 24, 28, 36 and 48 VDC output variants
- 94% efficiency rating
85 – 305 V600 Watt4.2″ x 7″ x 1.5″ (107 x 178 x 41mm)
- Wide input voltage range 85 – 264 VAC
- 750 W rated power
- 24 and 48 VDC standard output variants
- High operating efficiency up to 94%
85 – 264 VAC750 Watt101.6 x 234 x 41.0 mm
(4.00 x 9.21 x 1.61 in)
- Wide input voltage range 85 – 264 VAC
- 750 W rated power
- 24 and 48 VDC standard output variants
- High operating efficiency up to 94%
85 - 264750 W101.6 x 234.7 x 41.0 mm (4.0 x 9.21 x 1.61 in)
- Wide input voltage range 85 – 264 VAC
- 1200 W rated power
- 24 and 48 VDC standard output variants2
- High operating efficiency up to 94%
85 – 264 VAC1200 Watt101.6 x 234.0 x 41.0 mm (4.00 x 9.21 x 1.61 in)
- Wide input voltage range 85 – 264 VAC
- 1200 W rated power
- 24 VDC standard output variant
- High operating efficiency up to 94%
85 – 264 VAC1200 Watt101.6 x 234.0 x 41.0 mm
(4.00 x 9.21 x 1.61 in)
- Wide input voltage range 85 – 264 VAC
- 1200 W rated power
- 24 VDC standard output variant
- High operating efficiency up to 94%
85 - 2641200 Watt101.6 x 264.12 x 41.0 mm
(4.00 x 10.40 x 1.61 in)
Description
Datasheet
Output Range
Power
Outputs
- Nominal input voltage: 1500 W models: 120/220 – 240/277 VAC 1563 W models: 220-240/277/347/400 VAC
- Non-isolated, Class I
- 3 independent output channels: 1500 W models – max 500 W per output channel 1563 W models – max 521 W per output channel
260-5201563 W3- Nominal input voltage: 220 – 400 VAC
- Non-isolated, Class I
- 2 independent output channels max 521 W per channel
- Programmable output current setting from 700 – 1400 mA
260-5201042 W2
POWER SYSTEMS
Enedo designs highly reliable, energy-efficient power systems for demanding industrial applications. With over 45 years of experience, we deliver custom-engineered solutions ranging from compact wall- and rack-mounted systems to high-power cabinet solutions. Our power systems combine quality, flexibility, and precise performance tailored to your exact requirements.
If you'd like, I can also adapt the tone to be more technical, more marketing-focused, or SEO-optimized.
PRODUCTS OVERVIEW POWER SYSTEMS
CHOOSE FROM OUR PRODUCT CATEGORIES
Description
Datasheet
Input
Power
Size
- Proportional high voltage power supplies: the isolated output voltage is proportional to the input voltage
- Micro-size and lightweight
- High efficiency
- Isolation up to 500 Vdc
0,5 W12V or 24V100V/150V/200/V250V & 500V
- Integrated filtering
- Remote or local sense
- Efficiency: Up to 93 %
- Isolated and Parallelable
11 Input Ranges:
9 – 420 Vdc3,3 – 48 Vdc35 – 600 W
- Maximum Output Voltage/Power: 0.5 kV DC/0.1 W
- Type: Single output
- Ripple: < 100 ppm
- Control Interface: Analog
5 or 12Single (positive or negative polarity)0.1 W
- Maximum Output Voltage/Power: 0.1 kV DC/0.1 W
- Type: Single output
- Ripple: < 500 ppm
- Control Interface: Analog
5Single (positive or negative polarity)0.1 W
- Kleine tragbare Stromerzeuger
- Keine erkennbare Signatur
- Leichte Bedienung
- Einfache Plug-and-Play-Lösungen
25 W10 – 30 V DC184 x 74 x 252 mm
- Kleine tragbare Stromerzeuger
- Keine erkennbare Signatur
- Leichte Bedienung
- Einfache Plug-and-Play-Lösungen
50 W10 – 30 V DC214,5 x 96 x 264 mm- Small portable power generator
- No recognizable signature
- Easy to use
- Simple plug and play solutions
25 W10 – 30 V DC184 x 74 x 252 mm- Small portable power generator
- No recognizable signature
- Easy to use
- Simple plug and play solutions
50 W10 – 30 V DC214,5 x 96 x 264 mm
- Stromfreigabemodul für Parallel
- Spannungsabfallmethoden
- Keine Freigabe-Pin-Verbindung erforderlich
- Kein Tantalkondensator im Inneren
11 - 60 Vdc-1.25X0.80X0.50 Inches- Current Sharing Module for Parallel
- Voltage Droop Methods
- No Sharing Pin Connection Requirement
- No Tantalum Capacitor Inside
11 - 60 Vdc-1.25X0.80X0.50 Inches
- Micro-size and lightweight
- PCB flat mounting
- High voltage monitoring
0,5 W+5/+12 Vdc0.1/0.2/0.3/0.4 kVdc
- Efficient hydrogen fuel cell with air-cooled PEM technology
- With a power of up to 5 kW
- quick installation
- perfect for applications where a quiet and sustainable energy source is required
- flexible and reliable solution
5000 W48 V DC485 x 565 x 613 mm
- IC271_2
- IC272_2
- IC273_2
24,36,48,72,110 VDC14.4...154 V+12V/50W +15V/50W +24V/50W- IC271_2
- IC272_2
- IC273_2
24,36,48,72,110 VDC14.4...154 V+12V/50W +15V/50W +24V/50W
- Maximum Output Voltage/Power: 3 kV DC/1 W
- Type: Single output
- Ripple: 100 ppm
- Control Interface: Analog
5, 12, 15, or 24Single (positive or negative polarity)0.5, 0.8, or 1 W
- Maximum Output Voltage/Power: 3 kV DC/1 W
- Type: Single output
- Ripple: < 100 ppm
- Control Interface: Analog
5, 12, 15, or 24Single (positive or negative polarity)0.5, 0.8, or 1 W
- Die ideale Batterie für kalte Temperaturen
- Spritzwassergeschützt
- Hohe Energiekapazität bei geringem Gewicht
- Ideal für hohe Spitzenlasten
12,8 V70 Ah269 x 175 x 190 mm
- Die ideale Batterie für kalte Temperaturen
- Spritzwassergeschützt
- Hohe Energiekapazität bei geringem Gewicht
- Ideal für hohe Spitzenlasten
12,8 V105 Ah368 x 175 x 190 mm
- Bodenplattengekühlt
- UL/CSA
- Ideal als Hilfsstromversorgung
- Universalnetz, 3-phasig (kein Nullleiter)
180 … 550 Vac, 47/63 Hz24 V80 %
- Universalnetz
- Gebläsegekühlt
- Sicherheit: EN/UL/CSA/61010
- Gesamtausgangsleistung: 2400 W bei 40 VDC
90 V … 264 Vac, 50/60 Hz5 … 40 Vdc (programmable, V and I mode)93 %
- Modular und skalierbar
- Sicherheitszuhaltung Klasse PLe – einzigartig!
- Sehr geringe Welligkeit
- Ausgezeichnetes Einschwingverhalten
180 V – 528 Vac, 3Phase + PE. No derating at low line. 50/60 Hz, or 200-500 Vdc9-55 V (LAPS-4000-55)/ 15-90 V (LAPS-4000-90)91.7 % / 93.3 %
- Bis zu 21 kW / Einheit
- Wassergekühlt
- Kompaktes Design – 19"/3 HE
- Sicherheitsverriegelung der Klasse 3 / ISO13849-1 Klasse d
360 V - 528 Vac, 3 phase, 50 / 60 Hz5 - 45 V / 10 - 90 V / 15 - 135 V / 20 - 180 V / 30 - 270 V93 %
- Wasserkühlung (integriert)
- ISO 13849-1/Kategorie 4, PLe
- kostengünstig
- bis 10,8 kW elektrische Leistung
180-528 Vac, 3 phase, 50/60 Hz40-50 V-
- Power range from 2.5 to 50 kW
- can be used in ecologically sensitive areas
- quiet and efficient
- 46 tons - annual savings of CO2
- Emergency power supply for critical infrastructure
2500 W48 V DC670 x 441 x 310 mm (7HE)- The ideal battery for cold temperatures
- Splashproof
- High energy capacity at low weight
- Ideal for high peak loads
12,8 V70 Ah269 x 175 x 190 mm- The ideal battery for cold temperatures
- Splashproof
- High energy capacity at low weight
- Ideal for high peak loads
12,8 V105 Ah368 x 175 x 190 mm- Base plate-cooled
- UL/CSA
- Ideal as an auxiliary power supply
- Universal mains, 3-phase (no neutral)
180 … 550 Vac, 47/63 Hz24 V80 %- Universal mains
- Fan-cooled
- Safety:EN/UL/CSA/61010
- Total output power: 2400 W at 40 Vdc
90 V … 264 Vac, 50/60 Hz5 … 40 Vdc (programmable, V and I mode)93 %- Modular and scalable
- Safety locking device class PLe - unique!
- Very low ripple
- Excellent transient response
180 V – 528 Vac, 3Phase + PE. No derating at low line. 50/60 Hz, or 200-500 Vdc9-55 V (LAPS-4000-55)/ 15-90 V (LAPS-4000-90)91.7 % / 93.3 %- Up to 21 kW / unit
- Water-cooled
- Compact design – 19”/3U
- Class 3 safety interlock / ISO13849-1 class d
360 V - 528 Vac, 3 phase, 50 / 60 Hz5 - 45 V / 10 - 90 V / 15 - 135 V / 20 - 180 V / 30 - 270 V93 %- Water cooling (integrated)
- ISO 13849-1/Category 4, PLe
- cost effective
- up to 10.8 kW electrical output
180-528 Vac, 3 phase, 50/60 Hz40-50 V-
- Keine erkennbare Signatur
- Mobiles Feldladegerät
- Laufzeit 88 Stunden
- kann mit Power Manager 3G verbunden werden
125 W12 V / 24 V / 9,5 V – 16,5 V DC476 x 206 x 286 mm
- Energienetzwerk aufbauen
- Intelligente Stromverteilung im Fahrzeug
- Leistung max 500 W
- intelligente Kabelkodierung
500 W8 – 33 V DC162 x 95 x 36 mm- No recognizable signature
- Mobile Field Charger
- Runtime 88 hours
- can be connected to Power Manager 3G
125 W12 V / 24 V / 9,5 V – 16,5 V DC476 x 206 x 286 mm- Build an energy network
- Intelligent power distribution in the vehicle
- Power max 500 W
- intelligent cable coding
500 W8 – 33 V DC162 x 95 x 36 mm
- Quiet
- Emission-free 46 tons* CO₂ savings per year
- Saves running costs
- Configurable according to the required performance class
5 kW -10 kW Continuous output350kWhel / 205kWhel1.950 x 1.400 x 1.460 mm
- Safety interlock class PLe (unique!)
- Excellent transient response
- DC input capability
- High power density
180V - 528Vac, 3 Phase + PE. No derating at low line9-55V / 15-90V / 18-110V / 30-180V
9-55V / 15-90V /27-165V
9-55V / 15-90V / 18-110V / 30-180V
9-55V /15-90V / 24-145V93.3%- Sicherheitsverriegelung Klasse PLe (einzigartig!)
- Ausgezeichnetes Einschwingverhalten
- DC-Eingangsfähigkeit
- Hohe Leistungsdichte
180V - 528Vac, 3 Phase + PE. No derating at low line9-55V / 15-90V / 18-110V / 30-180V
9-55V / 15-90V /27-165V
9-55V / 15-90V / 18-110V / 30-180V
9-55V /15-90V / 24-145V93.3%
Custom Solutions
Developed to our customer's exacting specifications, or a collaborative specification created together by our customer and our design team, a fully discrete design by Enedo ensures an ideal match to your highly specialized power needs.
Full in-house testing ensures a robust product with high yields. In addition to our wide selection of standard AC/DC power supplies and LED drivers, we also offer our customers Full Custom and Modified Standard power supplies, power distribution units (PDUs) and LED drivers to support unique system applications. Enedo's DC and AC Power Systems are designed to be highly modular and configurable to meet the demands of specialized Telecommunication, Industrial and Utility applications. We are happy to work with you in order to create a customized power system developed with your exact electrical and mechanical needs in mind.
- Fully certified to industry safety standards
- Single or multi-output design platforms
- AC or DC input
- Digital control/monitoring
- Fan-cooled, Free-air cooled or Conduction cooled
- IP67 sealed against the environment
- Dedicated Program Management ensures technical, schedule and cost compliance
Power systems can be configured for various needs including:
- Small systems (wall mount)
- Medium systems (rack mount)
- Large systems (cabinets – up to 100kW)
Build-to-Print Service
Enedo offers our customers full Build-to-Print services for power conversion products utilizing our advanced Manufacturing and Testing facilities, Quality System and Procurement services. As part of our Build-to-Print program we offer:
- Collaborative services to examine changes to designs or procedures in order to improve the manufacturability of your power products
- Full customer control of all intellectual property making for easier vertical integration into their business
- Dedicated Enedo Program Management ensuring technical, schedule and cost compliance
Modified Standard Power Supplies
Enedo can create a value-added design based on one of our many existing products. Advantages include:
- Quick turn, unique designs for fast time to market
- Lower cost than full custom
- High reliability and low risk due to the use of proven topologies and circuitry
CONTACT US
WE'RE ONLY A CALL OR AN E-MAIL AWAY.
We are personally available for our customers in Austria, Germany, Poland, Turkey, South East Europe, Slovakia, and the Czech Republic. We especially look forward to personal meetings to understand your individual requirements and develop the best solutions together. Book your appointment now!
MANUFACTURES
STRONG PARTNERSHIPS. STRONG SOLUTIONS.
