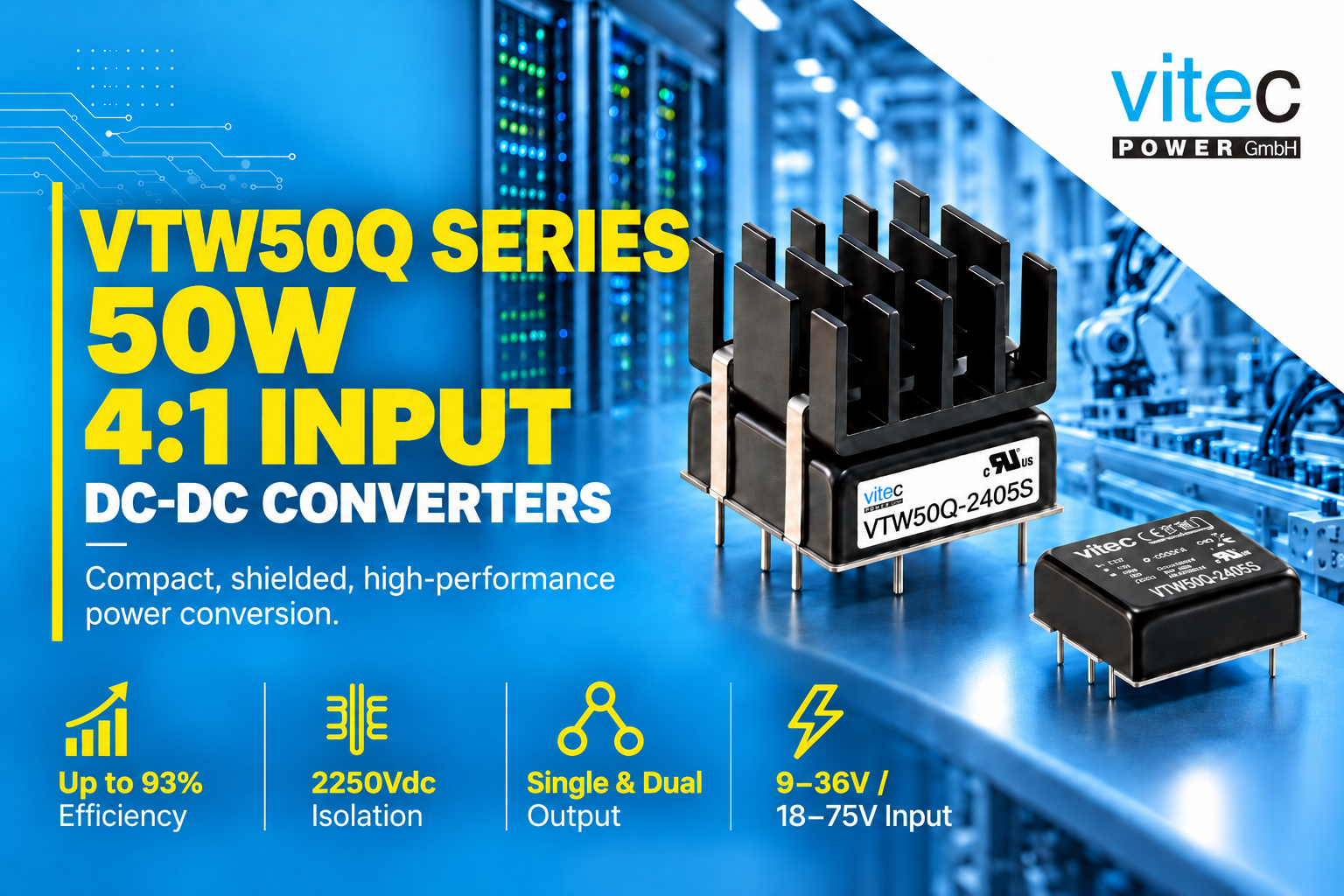

VTW50Q Series – 50W DC-DC Converters with 4:1 Wide Input Range
The VTW50Q Series from vitec POWER combines compact design, high efficiency and a wide input voltage range for demanding industrial power applications.
Delivering up to 50 W of output power, the isolated DC-DC converters feature a 4:1 wide input range, efficiency up to 93% and 2250 VDC input-to-output isolation. Models are available with single and dual outputs, making the series suitable for a wide variety of power architectures.
Two input ranges are available: 9–36 VDC for 24 V systems and 18–75 VDC for 48 V systems. Depending on the model, output voltages include 5 V, 12 V, 15 V, 24 V, ±12 V, ±15 V and ±24 V.
The compact, six-sided shielded package helps support reliable operation in electrically demanding environments. Integrated protection functions include over-voltage, over-current, short-circuit, under-voltage and over-temperature protection, while Remote ON/OFF enables flexible system-level power control.
With an operating temperature range of -40 °C to +110 °C with derating, operation at altitudes of up to 5,000 m, and optional heat-sink configurations, the VTW50Q Series is designed for robust industrial applications.
Typical applications include telecommunications, datacom, industrial control, automation, measurement equipment and industrial PCs.
Key Features
- Up to 50 W output power
- 4:1 wide input range
- 9–36 VDC or 18–75 VDC input
- Efficiency up to 93%
- 2250 VDC isolation
- Single and dual output versions
- Six-sided shielded package
- Remote ON/OFF
Key Features
- Comprehensive protection functions
- Operating temperature from -40 °C to +110 °C with derating
- Optional heat sinks
- Designed for telecom, industrial automation, control and datacom applications
For complete electrical specifications, available models, mechanical dimensions and application information, please refer to the VTW50Q Series datasheet.
Need help selecting the right VTW50Q model for your application? Contact vitec POWER for technical support and product information.
