EFOY PROCABINET
OUTDOOR ENERGY SOLUTIONS
EFOY ProCabinets are complete outdoor energy solutions for self-sufficient, stationary power supply with EFOY Pro Fuel Cells – completely without mains connection.
The stationary complete energy solutions consist of a control cabinet with space for one EFOY Pro Fuel Cell and, depending on the application, one or more fuel cartridges and batteries. EFOY ProCabinets can be designed according to individual requirements and thus offer sufficient space for individual installations. In addition to the standard solar charge controller, different types of charge controllers, for example a GSM modem for remote monitoring of the system or a voltage converter for voltage adjustments can be installed.
EFOY ProCabinets are suitable for stand-alone operation or as a back-up solution for an uninterruptible power supply (UPS). With a power consumption of 50 W, the EFOY ProCabinet with two MT60 tanks provides reliable power for 2,640 operating hours or 110 days, without user intervention.
OVERVIEW EFOY PROCABINET
Depending on the temperature at the point of use and the power requirements, various EFOY ProCabinet models are available which are tailored to the respective requirements. EFOY ProCabinets are complete solutions with different unique features for reliable and environmentally friendly power supply.
EFOY PROCABINETS FOR EFOY & EFOY PRO 900/1800/2800
EFOY ProCabinets are available in a variety of sizes and enclosure types to meet your requirements. The models range from permanently installed control cabinets to semi-stationary cabinets for mast or wall mounting. EFOY ProCabinets are compatible for hybrid operation and are often used as back-up solutions or extensions for solar systems. They can be customized and various remote monitoring components and connections are optionally available.

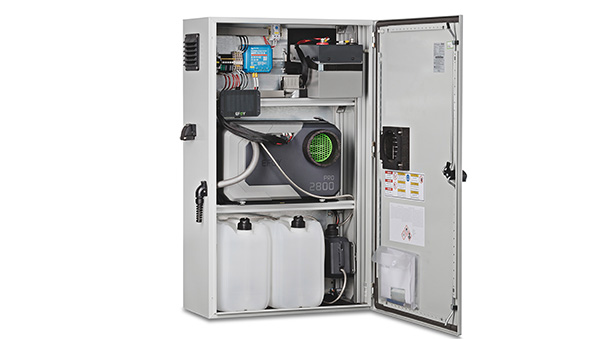

2020S-3 / 153 002 100 (EN)
DOWNLOAD (PDF)2020S-3 / 153 002 101 (EN)
DOWNLOAD (PDF)2020SX-3 / 153 002 110 (EN)
DOWNLOAD (PDF)2020SX-3 / 153 002 111 (EN)
DOWNLOAD (PDF)2130A-3 / 153 002 120 (EN)
DOWNLOAD (PDF)2130A-3 / 153 002 121 (EN)

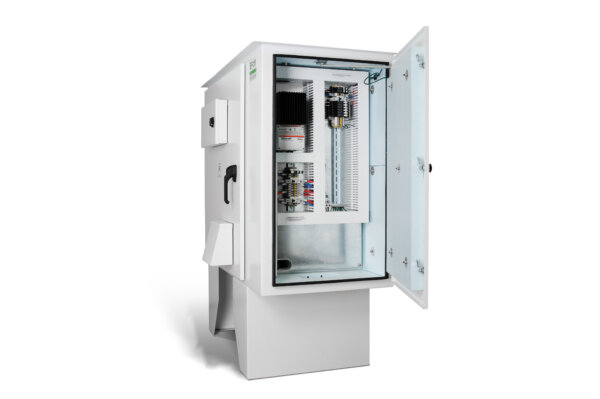

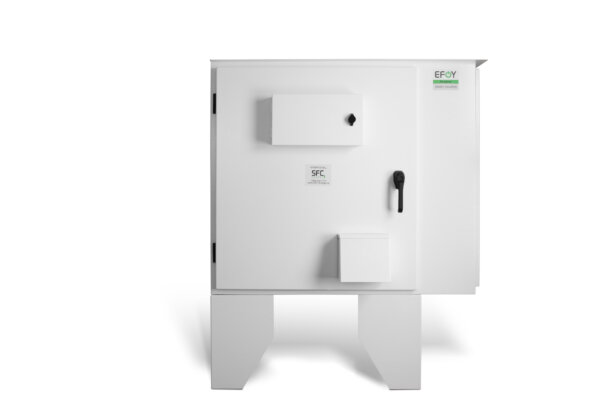

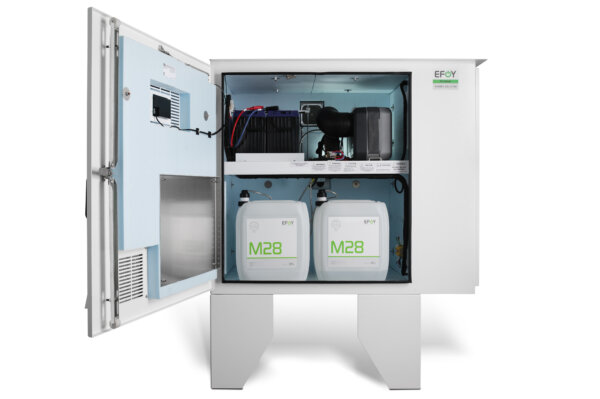

DOWNLOAD (PDF)4060S/4060SX (EN)
DOWNLOAD (PDF)EFOY PROCABINETS FOR EFOY PRO 12000 DUO
Applications with higher power requirements can easily be covered by the EFOY Pro 12000 Duo with 500 W output power. The compact design allows installation in various cabinet variants. EFOY Pro Cabinets for the EFOY Pro 12000 Duo are compatible for hybrid operation and are often used as a back-up solution or extension for solar systems. They can be customized and various remote monitoring components and connections are optionally available.
