AIF13WAC

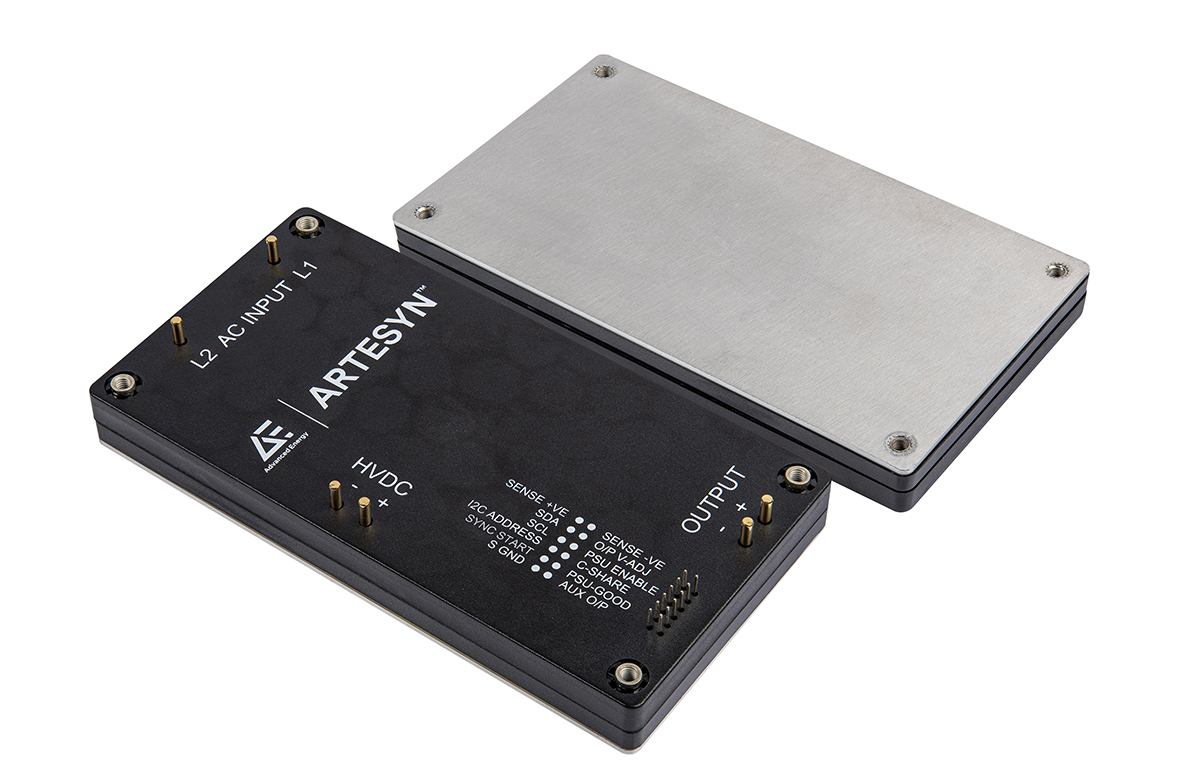

Advanced Energy’s Artesyn AIF13WAC series delivers 600 W in the same full-brick size as 500 W units (standard 2.4 in x 4.6 in x 0.55 in height), providing an easy upgrade path and simplified application design. These 600 W AC-DC full-brick power modules feature full digital control, internal inrush limiting, and active current sharing. They accept a wide 90 to 264 VAC input, provide 94% (typical) efficiency, and deliver a nominal isolated output voltage of 48 VDC with a 10 V auxiliary output. These 600 W AC-DC converters are optimized for contact-cooled applications, such as I.P. sealed systems in which the converters are located inside the casing. PMBus control simplifies use and minimizes external components.

SPECIAL FEATURES

• Input voltage and frequency: 86 to 264 VAC, 47 to 63 Hz
• Output noise: 480 mV pk-pk max
• Output power: 48 V, 13 A
• Auxilary output: 10 V at 250 mA
• Hold-up HVDC: 380 VDC
• Control output voltage adjust: -20 to +10% Vout
• Isolation 4000 VDC input to output
• Isolation 2500 VDC input to baseplate
• Isolation 1000 VDC output to baseplate
• Parallel unit capability: Up to three units
• Thermal derating: 100% power at 100°C baseplate
• Efficiency: Up to 94% high-line input
