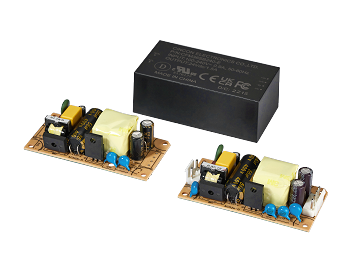

The CFM36S series is our new cost-effective AC-DC open frame power supply that provides 36W of regulated power in the size of 3 x 1.5 inches (76.2 x 38.1 mm). It has safety approvals for IEC/UL/EN 62368-1 3rd edition and meets IEC/EN60335-1 for household appliances. It is available in 5 outputs of 5, 12, 15, 24, and 48 VDC, and available in class II and class I (Class I only for wafer type). In addition, this series serves with three packages which are on-board open-frame, wafer, and on-board encapsulated.
Exceptional Performance:
The power supply offers a low leakage current of 0.1mA max., an outstanding high efficiency up to 89%, and a very wide operating temperature range of -40°C to +80°C, which covers most of the harsh environments. This power supply can be used at a high altitude up to 5000m max. and features a low no load input power consumption less than 0.1W. Moreover, the remarkable MTBF would be 700k hours.
Full Protections:
Safety approvals for EN/UL/IEC 62368-1 3rd edition, and the design meets IEC/EN60335-1. EMC compliant to EN 55032 Class B and CISPR/FCC Class B. This series is fully protected and offers output over current protection, output over voltage protection, and continuous short circuit protection.
Applications:
This AC-DC power supply is very suitable for a variety of industrial/ITE applications such as automation equipment, test & measurement instrument, commercial equipment, and more industrial applications. Also, for home appliances, it is suitable for air purifier, aquarium pump, humidifier, table fan and more.
