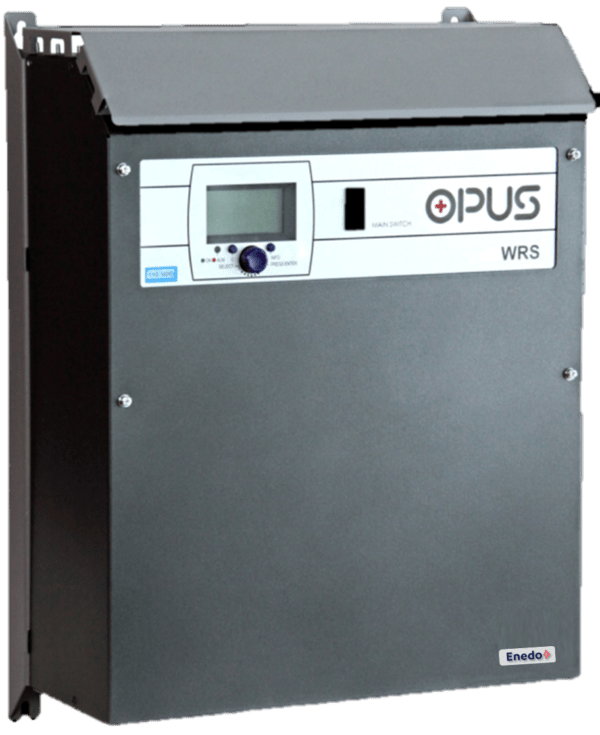

OPUS C WRS Charging Rectifier Systems

The OPUS WRS is a natural convection cooled, wall-mounted charging rectifier system for industrial market applications. Together with batteries it provides uninterrupted DC power for critical loads.

The compact design, comprehensive monitoring features and alarm functions of the OPUS WRS DC power system make it a very cost effective solution for a wide range of applications where high reliability and system availability are a must. The OPUS WRS Rectifier Charging System is capable of up to 1600 W output power (1100 W for 24 VDC models), and is available in 24, 48, 60, 110 and 220 VDC standard output variants.

Packaged in a wall-mounted IP21 enclosure, the OPUS WRS product line consists of the MRC rectifiers, VIDI+ I/O controller, and MCB protection for the mains, load and battery. Distribution and connections are behind the front panel.

Key features

• Compact low weight design
• Natural convection cooling – low noise operation
• Easy installation
• Standard output variants include 24, 48, 60, 110, & 220 VDC
• Maximum output power 1600W (1100W for 24 VDC models)
• Battery connection: 1 string with full current
• MCB protection with shunt resistor
• Safety: IEC/EN 60950-1
• CE mark

Applications

• Industrial systems
• Process control
• Telecommunications
