OPUS C WRS Charging Rectifier Systems

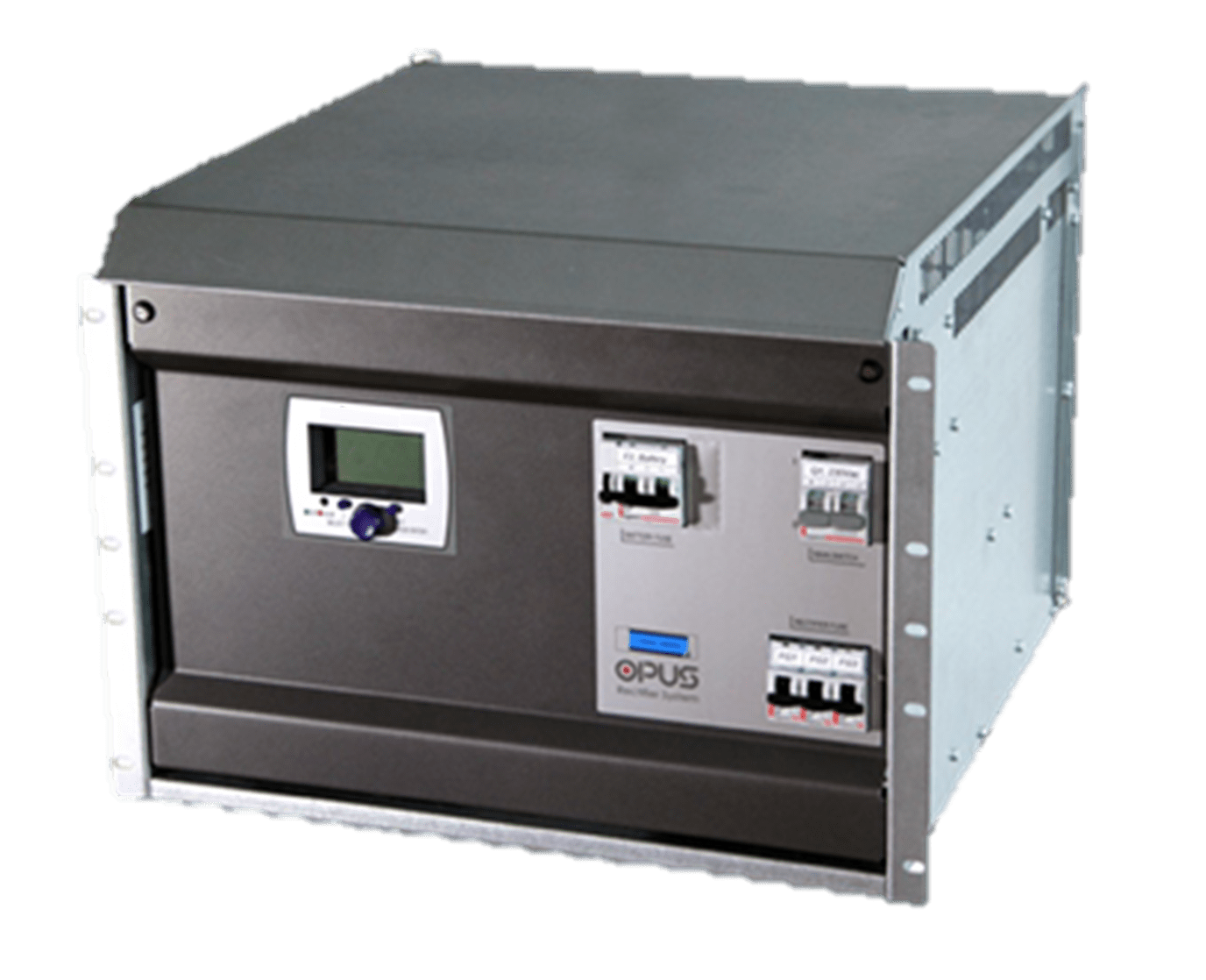

OPUS C 7U 19″ rack power systems are robust, N+1 redundant, free convection cooled backup power solutions for critical infrastructure applications such as distribution and transmission substations, process control industries and telecommunications.

The OPUS C 7U 19″ rack-mount power system are configured to customer specifications utilizing OPUS C standard building blocks consisting of the MRC series rectifiers, VIDI+ controllers, mains and battery connections, and a wide selection of load distribution options.

OPUS C systems are available in  24, 48, 60, 110, 125 and 220 VDC standard output variants and have a max output power of 4.8 kW (3.3 kW for 24 VDC models).

System options include a battery LVD, temperature sensor, wall-mount kit and IP21 cover kit.

The systems meet IEC 60950-1 safety standards and the following EMC standards: Emissions: IEC/EN 61000-6-4, Immunity: IEC/EN 61000-6-2, Harmonics: IEC/EN 61000-3-2, and Voltage Fluctuations & Flicker: IEC/EN 61000-3-3.

Key features

• Convection cooling
• Max 4.8 kW output power (3.3 kW for 24 VDC models)
• N+1 Redundancy
• Models include 24, 48, 60, 110, 125 & 220 VDC standard output variants
• Battery connection: 1 string with full current, MCB protection
• Options: Battery LVD, Temperature sensor, wall mounting & IP21 kit
• Safety: IEC/EN 60950-1

Applications

• Critical infrastructure
• Transmission substations
• Distribution substations
• Process industries
• Telecommunications
