The hydrogen fuel cell for higher power ranges
Nominal outputs from 2.5 to 50 kW

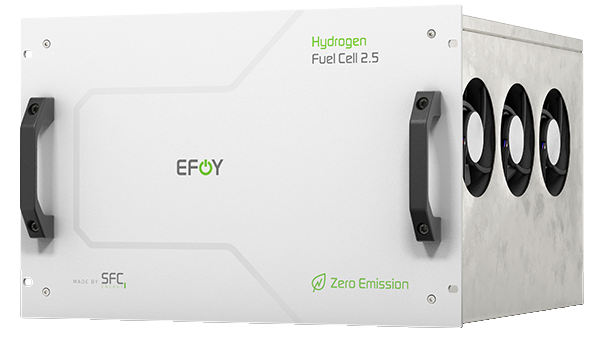

The EFOY Hydrogen Fuel Cell 2.5 supplements the comprehensive product range of SFC Energy with energy solutions in the higher power range and provides reliable, powerful and uninterrupted climate-neutral energy. Power output from 2.5 to 50 kW can be individually scaled. The operation and installation are very simple and no emissions are generated. That is why the EFOY Hydrogen Fuel Cell can also be used in environmentally sensitive areas and is very quiet and efficient. The EFOY Hydrogen Fuel Cell is used, for example, to supply power to mobile communications infrastructure, smart traffic applications or to provide emergency power to critical infrastructure.
Fuel for the EFOY Hydrogen 2.5
Hydrogen is gaseous, colourless and odourless. It is typically stored in compressed gas cylinders from 200 to 300 bar. Hydrogen – based on its weight – has a very high energy density. The fuel is harmless to the environment and non-toxic to humans.
| Power output1 | 2500 W |
| Nominal voltage | 48 V DC |
| Supply voltage | 40.5 – 57.0 V DC |
| Weight | 27.0 kg |
| Connectable H₂ bottles | The system has one connection. Multiple gas-bottles could be connected. |
|
Fuel
|
Hydrogen
|
|
Purity of fuel
|
3.0 or better
|
|
Nominal fuel consumption
|
11 Nl H₂/min/kW
|
|
Temperature of air2
|
-33 °C to +50 °C
|
|
Operating height
|
Up to 3000 m above sea level
|
|
Measurements l x w x h
|
536 x 483 x 311 mm
|
|
IP-class
|
IP 20
|
|
Control
|
Remote Monitoring Tool (optional)
|
|
Data-Interface
|
CAN-Bus
|
